26inch Universal LED Backlight strip Lamps Update kit For LCD Monitor 2 LED Strips Support

FOB Reference Price:Get Latest Price
$2.80 - $3.60 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 5000 Sets)
Customized packaging (Min. Order: 5000 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
creatall
Model Number:
ca-600
Supply Ability
Supply Ability:
10000 Set/Sets per Day
Packaging & Delivery
Packaging Details
bubble bag
Port
shenzhen port
Lead Time :
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated

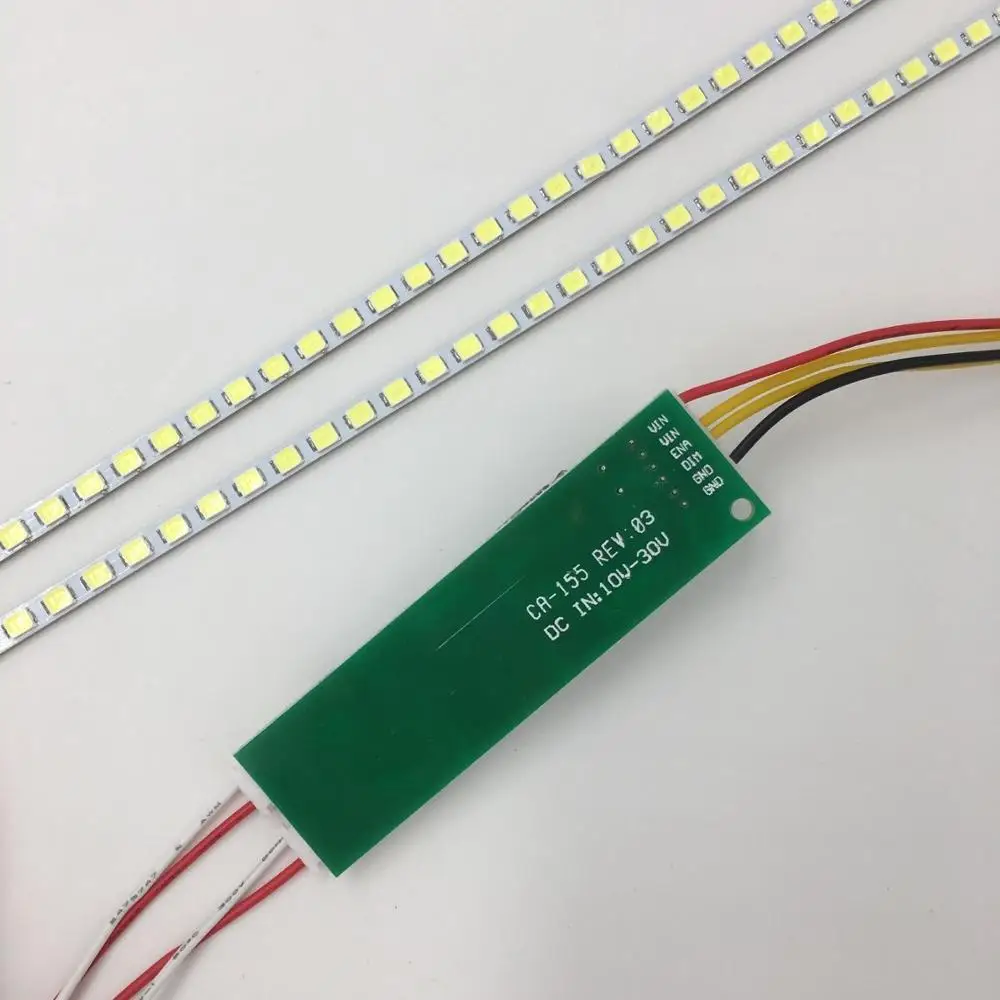

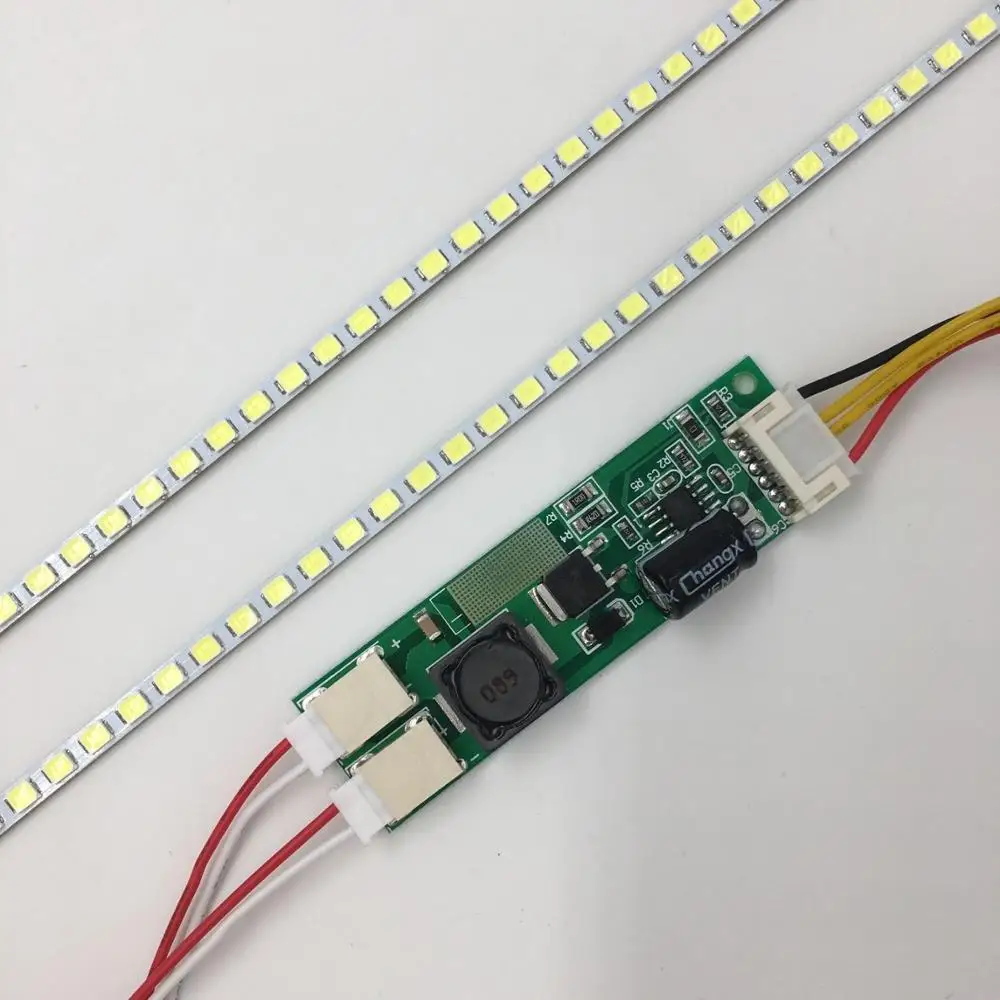

26inch Universal LED Backlight strip Lamps Update kit For LCD Monitor 2 LED Strips Support 600mm

converter:7x2cm
input:DC 10x30v




Package:
2x LED strip
1x converter
1x connection cable





our led is 3pcs/group, you can cut into your size.





 Installation:

If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;

If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),

and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting

the negative terminal, the board received three line: 12V, ON, GND, the 12v of  the inverter connect with 12v positive

electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect

with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,

In the original high-pressure front to take power



VIN  : voltage

ENA: on/off

DIM: ADJ  adjust brightness

GND: connecting Ground

Hope this can help you ,this is DIY kit,we cannot replace you to do it all.Hope that you can understand it

If you donot know any repair skill,you"d better not choose this kit.















We have also these below sizes for your choice:


for monitor screen:
15inch led strip  kit: length:325mm
17inch led strip  kit:length:355mm
19inch led strip  kit: length:395mm
19inch wide panel led strip  kit :length:425mm
18.5inch  led strip  kit: length:425mm
20inch led strip  kit: length:455mm
22inch led strip  kit:length:490mmmm
23.6inch led strip kit,length:530mm
24inch led strip kit: length:540mm
 25inch led strip kit: length':560mm
26inch led strip kit,length: 600mm
27inch led strip kit,length: 620mm
what sizes do you need?
